COILED TUBING LIFT FRAME
POWERCOIL
CTLF
A 500-ton coiled tubing lift frame engineered for safe, efficient lifting in deepwater environments — purpose-built for wireline and coiled tubing operations across drilling, completion, and intervention applications.

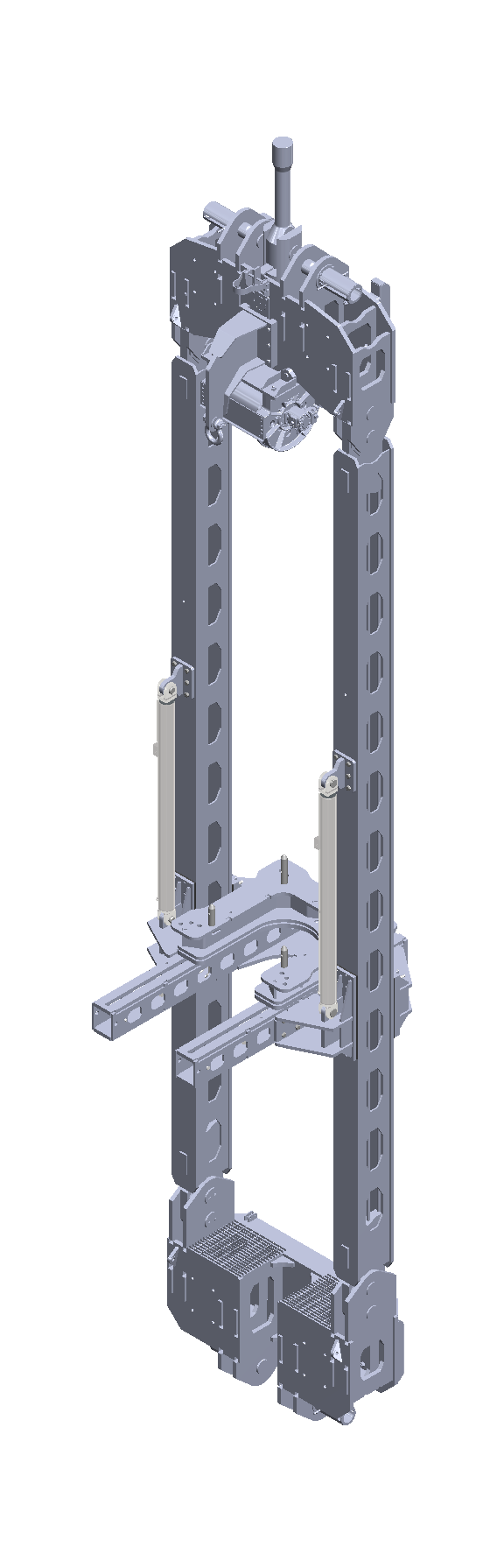

PowerCoil CTLF lift frame
500-TON LIFT FRAME
500 Ton
CAPACITY
80" x 420"
WORK WINDOW
40,000 lb.
HOIST
52' 7.5"
TOTAL HEIGHT
API 8C / DNV
COMPLIANCE
KEY FEATURES
500-ton rating
Engineered and built to account for 1,000,000 lbs. of string weight.
40,000 lb. centerline hoist
Hydraulic hoist provides smooth, precise well-center lifting; can be double-lined for increased capacity.
Open lower section
22 in. lower opening supports handling of wireline and coiled tubing components.
Articulating lift sub
Pivoting 6-5/8 in. – 18° taper bottleneck lift sub helps align rig-up over well center.
Dual bail pin options
Upper pins accommodate 500T and 750T bails; lower pins accommodate 350T and 500T bails.
Compliance focus
Certified to API 8C and DNV 2.7-3 lifting requirements.

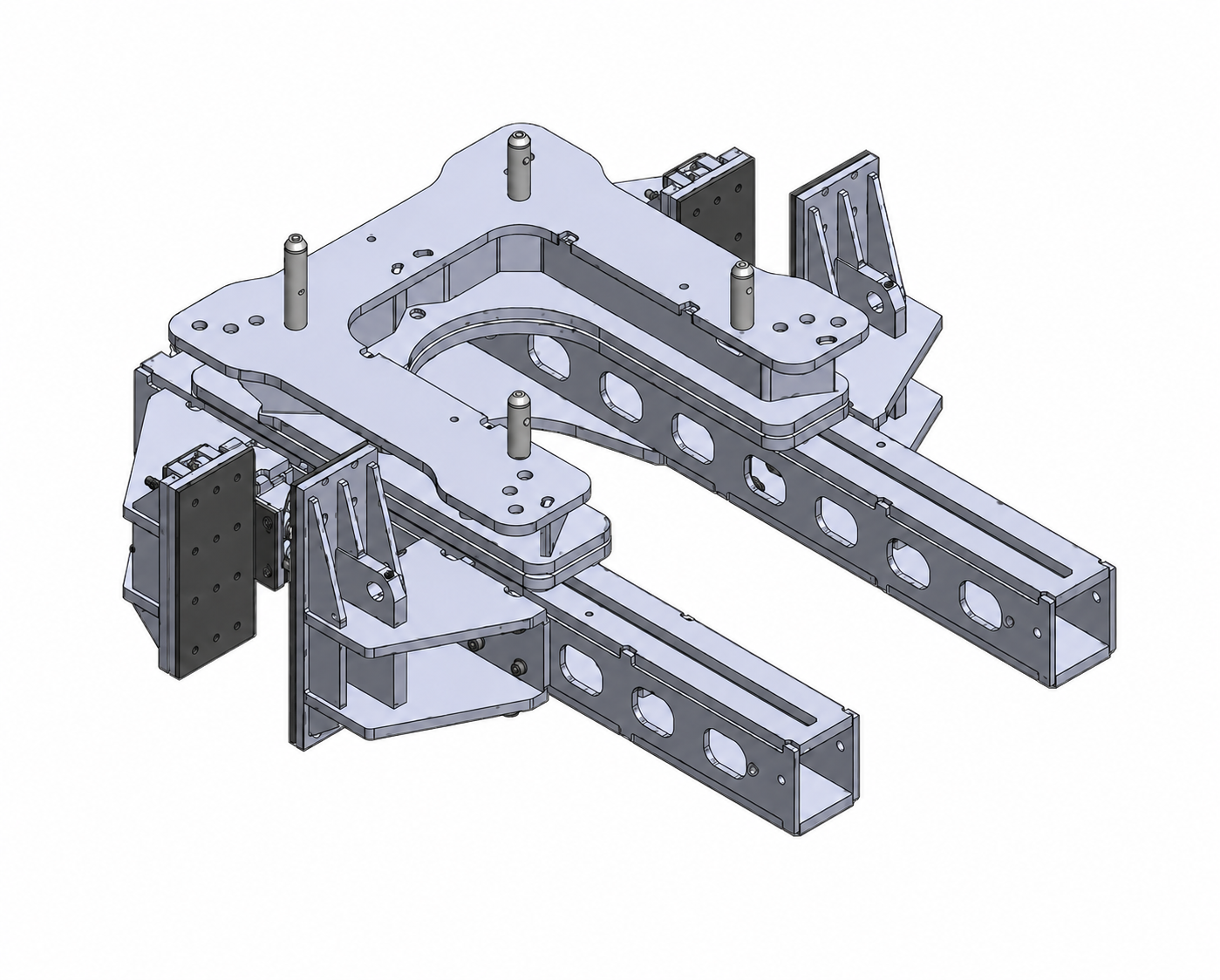

CTLF power table
CTLF POWER TABLE
9 ft vertical stroke · 4 ft horizontal stroke
20° rotating adapter · Multi-configuration adapter
48,000 lbs. off-center load capacity
1029 Maurice Rd. · Broussard, LA 70518
SuperiorPerformance.cominfo@superiorperformance.com800.210.9103
POWERCOIL SYSTEM OVERVIEW
Superior Performance
AVAILABLE CONFIGURATION
CAPACITY500 Ton
TOTAL HEIGHT52 ft 7.5 in.
TOTAL WIDTH9 ft 6.5 in.
WORK WINDOW80 in. x 420 in.
MGW57,500 lbs. (without table)
ESTIMATED WEIGHT55,000 lbs. (without table)
LIFT SUB6-5/8 in. – 18° taper bottleneck
HYDRAULIC HOIST40,000 lbs. centerline
WIRELINE HANGOFF PAD EYE40,000 lbs.
HPU SPECS480 VAC; 68.33 full load amps
BAIL PIN OPTIONSUpper: 500T / 750T · Lower: 350T / 500T
COMPLIANCEAPI 8C · DNV 2.7-3 lifting
OPERATION & RIG-UP FOCUS
1
Frame is rigged up using the specified lifting sequence and sling arrangement.
2
Articulating lift sub aligns the frame over well center and eliminates side loading of the top drive elevator.
3
Open-face bottom section and work window accommodate wireline, coiled tubing, and PCE components.
4
Wireless Crane Smart hoist load monitoring, contained bail pins, and certified lift design support safer rig-up.
5
Certified lift design and side-lifting capability support controlled rig-up in tight V-door configurations.

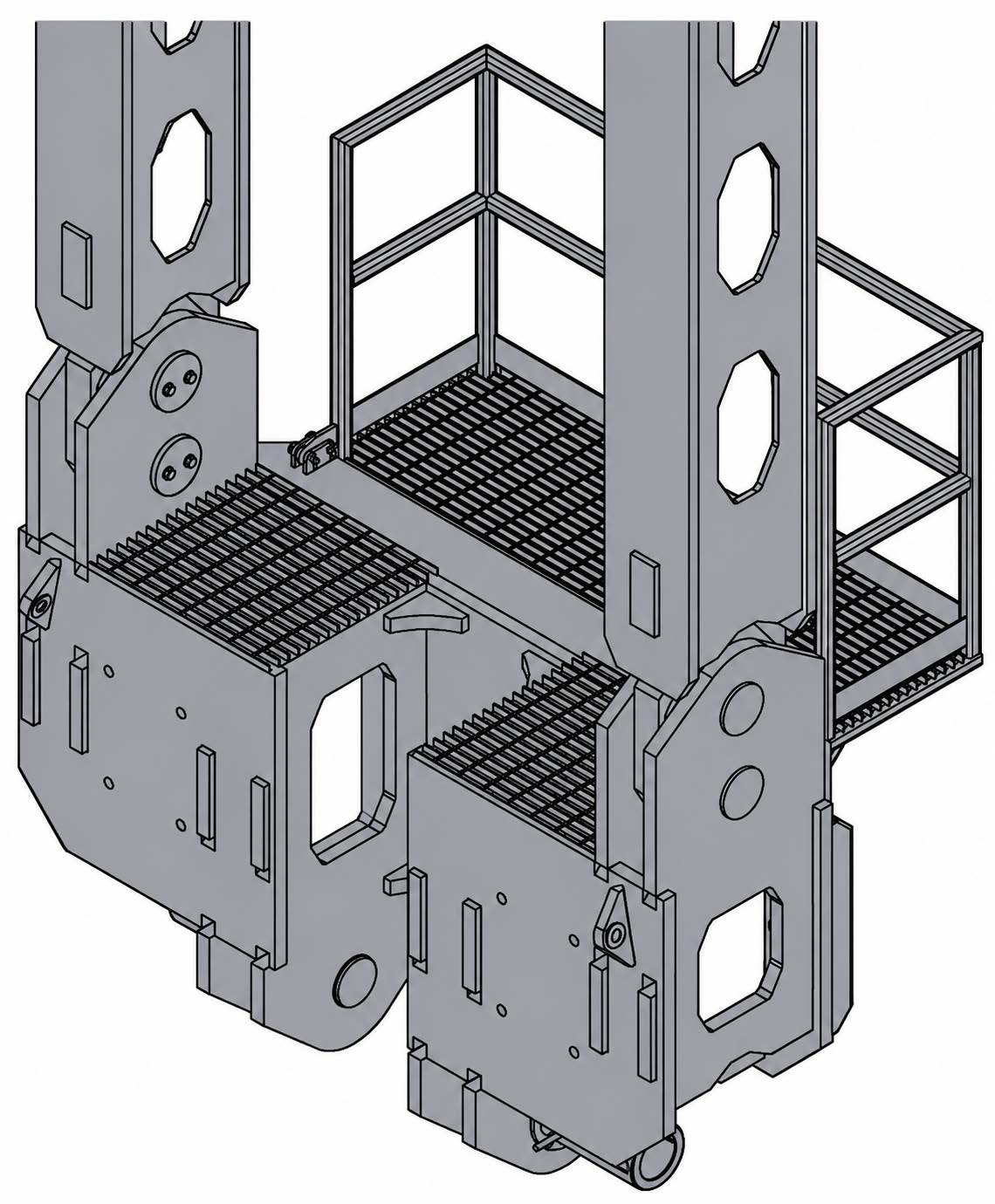

PowerCoil CTLF open lower section
OPEN LOWER SECTION
OPERATIONAL HIGHLIGHTS
Purpose-built for wireline and coiled tubing operations
Open lower section for seamless component handling
Contained upper and lower bail pins
Side lifting capability with wireline sheave hangoff point
Load cell with display panel
