HIGH-PRESSURE DEBRIS REMOVAL

POWERCYCLONE
HPDU

Hydrocyclone primary separation combined with dual-barrel secondary screen filtration — removing bulk solids, reducing screen loading, and maintaining stable circulation for completion and workover operations.

PATENT PENDING NO. 19/056,939

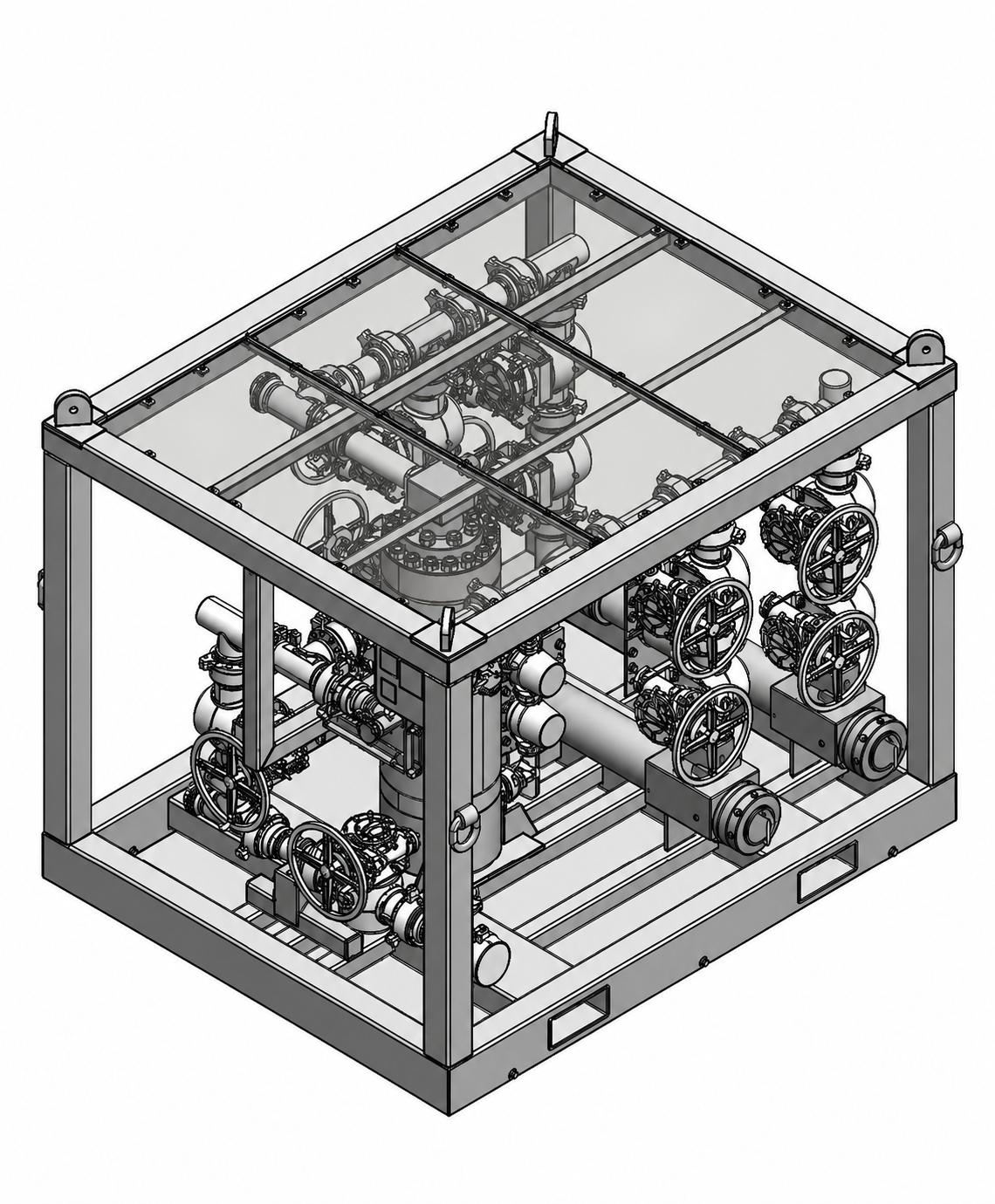

HPDU UNIT

22 / 35 BPM

FLOW RATE

3" & 4" WECO

1502 CONNECTIONS

10K & 15K

PRESSURE (PSI)

150 / 200

FILTRATION (MICRON)

2500 PSI

MAX DIFFERENTIAL

KEY FEATURES

Hydrocyclone separation

Primary cyclonic separation removes bulk solids upstream of the secondary screen barrels.

Dual-barrel screens

Parallel screen barrels allow one side to remain in service while the other is isolated for cleaning.

Continuous circulation

Valve arrangement supports uninterrupted filtration and bypassing when required.

Real-time digital monitoring

Pressure monitoring at key points supports differential pressure management.

Limited differential pressure

Cyclonic separation reduces solids loading across the screen barrels during circulation.

Rig air & water only

No external electrical power required for continuous operation.

CYCLONIC SEPARATION, DOWN TO 10 MICRONS

Under optimized conditions, the PowerCyclone removes debris down to 10 microns while parallel screen barrels with isolation capability keep circulation continuous — no shutdown required for cleaning.

1029 Maurice Rd. · Broussard, LA 70518

SuperiorPerformance.cominfo@superiorperformance.com800.210.9103

HOW THE POWERCYCLONE WORKS

MULTI-STAGE DEBRIS REMOVAL

Fluid enters the unit through the WECO inlet and is directed into the hydrocyclone.

Cyclonic force separates debris from the process stream.

Fluid continues through dual-barrel screens for secondary filtration.

Captured debris is collected independently for review or disposal.

AVAILABLE CONFIGURATIONS

SPECIFICATION3" POWERCYCLONE4" POWERCYCLONE

CONNECTION3" 1502 WECO4" 1502 WECO

FLOW RATE22 BPM35 BPM

PRESSURE RATING10K & 15K PSI10K & 15K PSI

DIMENSIONS8'L x 9'W x 7.85'H8'L x 10'W x 8.25'H

GROSS WEIGHT15,000 lbs.19,500 lbs.

CYCLONE CAPACITY77.40 lbs.77.40 lbs.

SCREEN CAPACITY15 lbs. ea18 lbs. ea

FILTER MICRON150 / 200150 / 200

UTILITIESRig Air / Rig WaterRig Air / Rig Water

MAX DIFFERENTIAL2500 PSI2500 PSI

DUAL-BARREL SCREEN SECTION

OPERATIONAL HIGHLIGHTS

Debris removal down to 10 microns (optimized conditions)

Parallel screen barrels with isolation for continuous operation

Real-time digital differential pressure monitoring

Limited differential pressure across screen barrels during circulation

DNV lifting specs on both configurations

1029 Maurice Rd. · Broussard, LA 70518

SuperiorPerformance.cominfo@superiorperformance.com800.210.9103
